To filter the exhaust air in spray booths.
PAINT STOP
Applications:
High quality filtration emissions mists or pigments in paint booths.
Thanks to its high storage capacity , is particularly suitable for installations with heat recovery systems.
Manufacture:
Elastic fiber glass structure with progressive increases from the dirty air side ( blue) to the clean air side ( white).
Special Features:
With low compressibility , is not deformed even under pressure , enabling high accumulation of particles inside .
Burning behavior:
F1 ( Non-flammable substance DIN 53438 )
Thermal stability:
Up to 120 º C.
Technical data:
Weight 300 g/m2
3 inches thick
Grade separation (Test fog) 90-95 %
Nominal flow speed 2.5 m / s
Initial pressure drop 25 Pa
Recommended final pressure 250 Pa
Supply Dimensions :
Rolls of 20 m long x 0.7-0.75 - 1 & 2 m wide
Kolossus
Application:
Filter for paint, varnish , lacquer, etc. . booths with dry filtration. New alternative system to the blanket "Paint Stop" yaa fiberglass booths water curtain.
It can be placed either on the ground or in the form of curtain.
Structure:
Kolossus. High efficiency filter media comprising layers of kraft paper 8 assembled by creating a multi- step system acquisition.
Kolossus II. 5-ply paper and synthetic fibers, designed for dry products.
Advantages:
- Unlike traditional fiberglass:
• Duration 3 or 4 times, depending on the application, which means reduced maintenance costs.
• Increased effectiveness of retention.
• Handling clean.
• Easily incinerated.
- In front of the curtain of water:
• Increased effectiveness of retention.
• Low pressure drop, which means lower energy costs.
• Ease of maintenance.
• Lower installation costs.
Technical data:
Pressure drops:
- Asking to 0.76 m / s 7 Pa
- Recommended Final 140 Pa
Overall efficiency:
Products Kolossus Kolossus II
Water soluble 96 % 98 %
Thermoset 97 % 99 %
Dry 90 % 97 %
Temperature resistance -15 to 80 º C
Flame resistance M2 ( no fuel)
Standard Dimensions:
Rolls of length 12 m and width 0.7 to 0.8 and 1 m
CARDBOARD CREASED
In three versions:

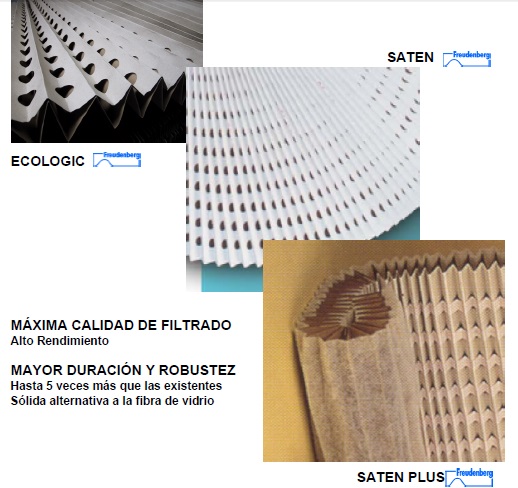

Pleated filters for paint booths
