CONNECTORS FOR OPTIC FIBRE NETWORKS

The CleanFit range, composed of bio-polymer fittings, PU and PFA tubing, drives high-tech equipment beyond current connection limits in terms of cleanliness, reliability and safety.

This ultra-clean sterilisable range ensures perfect compatibility with most gases, including pure and medical fluids, thereby complying with most demanding applications and standards in life science and industrial clean process applications.

The new range can be customized and adapted to non-standard products to provide a global solution for fluid conveyance. CleanFit products help ensure that there is zero risk of contamination, damaged or unsafe products, or losses due to production stoppages.

CleanFit products cover a broad range of working temperatures and combine unsurpassed cleanliness with superior mechanical performance for longevity and safety.

FDA-approved, classified ASTM B93-03 B level 300, certified ISO 15001, and tested for clean rooms according to VDI 2083-8 and ISO 14644, the CleanFit range is available in a metric version from 4 mm to 12 mm, with specific packaging to ensure product integrity until the first use.

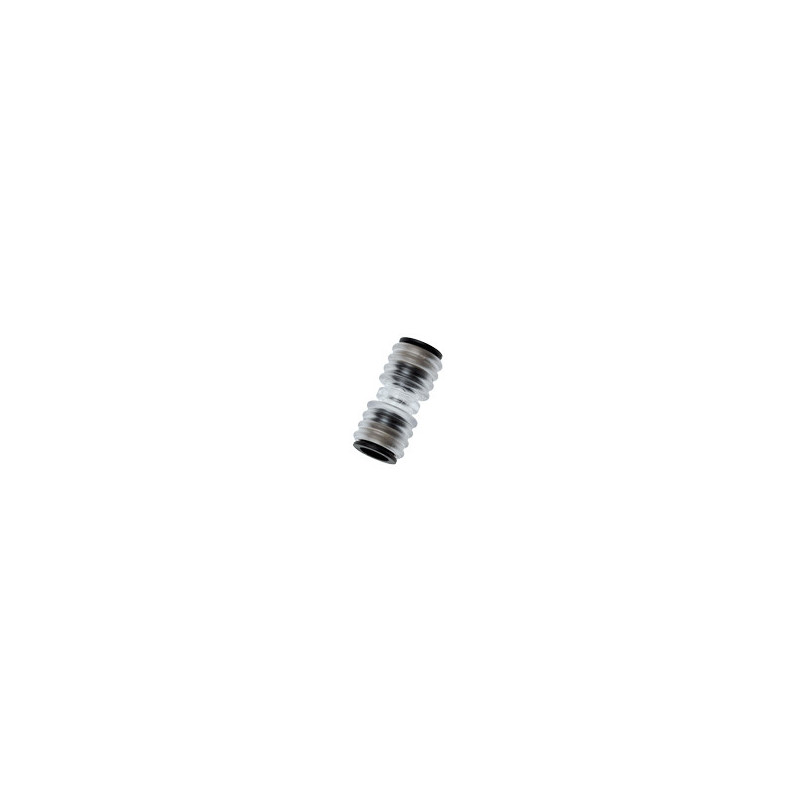

A) Direct Buried Connectors

Product Advantages:

• Transparent: fibre optic ducts and correct tube connection can be seen and verified.
• Patented ridged design for unsurpassed shock resistance.
• No protection cap necessary
• 1 connector for 2 different wall thicknesses of the tubing (bridging possible between direct buried and direct install micro-tubing)
• Compact design and intuitive installation.
• Pre-assembled safety clip to prevent risk of accidental disconnection.
• High working pressure for increased blowing speed/distance.
• Tried-and-tested connection technology to ensure tensile strength and resistance to network expansion
• Perfect sealing IP68: full protection against particle ingress
• UL94: flame resistance for indoor installations
• Date coding to guarantee quality and traceability
• 100% leak-tested in production

Applications:

• Underground Networks
• Micro-Tubing
• Air Blowing
• Water Floating
• Heavy Duty Ducting

B) Direct Install Connectors

Product Advantages:

• Reliable technology of push-in connection.
• Minimum distance between two tubes when connected, eliminating the risk of blockage during blowing
• 1 connector for 2 different wall thicknesses of the tubing (bridging possible between direct buried and direct install micro-tubing)
• Ultra compact design and intuitive installation
• Safety clip for preventing risk of accidental disconnection
• Tried-and-tested connection technology to ensure capability for network expansion
• Perfect sealing IP68: full protection against particle ingress
• UL94 V-2: flame resistance for indoor installations
• Date coding to guarantee quality and traceability
• 100% leak-tested in production

Applications:

• Direct Install Networks
• Micro-Tubing
• Air Blowing
• Aerial Ducting
• Sub-Ducts

C) End Cap Gas Block Connector

Product Advantages:

• More possibilities with fewer references
• 1 connector allows for several microduct/fibre cable combinations
• Optic fibre cable visible as it passes through seal, allowing for considerable time-saving
• Visual connection indication
• 100% push-in technology with optic fibre cable sealing
• Ultra compact design
• Unique design guaranteeing maximum safety of use
• Gas and watertight up to 1 bar
• UL94 V-2: flame resistance for indoor installations
• Safety clip for preventing risk of accidental disconnection

Applications:

• Underground Networks
• Micro-Tubing
• Air Blowing
• Water Floating
• Heavy Duty Ducting
